150t/24h Maize Flour Milling Machine

150tpd maize flour milling machine

Features of Maize Grinding Machine:

1. Turnkey project of maize grinder machine.

2. Advanced technology support and customized design.

3. Thorough crafts and rational allocation.

4. Low power consumption.

5. Perfect after-sales service.

6. Two year guarantee.

products from the maize mill:

The maize milling machine can produce different kind of maize meal,and maize flour,food for making Africa staple food.

Products quality index:

Flow :
Technical Flow:

This is the commercial maize flour milling processing machine,It include flour-step:

 Cleaning--  conditioning--  degerminating--milling--sifting-- packing

1. Cleaning system: when buying the maize, normally the maize is very dirty in Africa countries. So before processing, need to cleaning first.In the maize there is many kind of impurity, like stone, iron, rope, plastic etc. So according this we use maize drum sifter/maize cleaner/maize destoner etc machines to cleaning the maize.

2. Degerminating system: After cleaning the maize, before degerminating, first need the moisture the maize and let the maize sleep in the moisture bin for 2-10 hours according the different request, then go to the maize degerminator, the degerminator can scrub the maize skin from maize kernel and dislodge the germ from its cavity with the minimum reduction in size of broken fragments.

3. Milling system: The process of manufacturing the products involves three fundamental sub-processes. Firstly, physically detaches the three components of the maize kernel from each other with as little dilution or mixing as possible. Secondly, sorts and classifies the detached particles into specific groups and the last, sizes and reduces the particles to the required granularity. The three components are then recombined as necessary depending on the type of finished product required. The aim of the process then, is to detach the bran and germ from the maize kernels with a minimum disintegration of either the endosperm or the bran/ germ casing. The pure endosperm is then gradually reduced in size to form products of different granularity, ranging from the relatively large pieces of samp to the very Fine maize flour.

4. Packing system: Maize flour packaging machine can packing with different kind of bags, like 1kg/2kg/5kg/10kg/25kg/50kg.

Main mill machines:

 --- roller mill

The mill is the most important one machine of whole processing line, is mainly for grinding. To break wheat and bran’s structure, and spearate the wheat husk and the embryo from endosperm by grinding.

---plansifter

Material: High-strength alloy steel

Up and down sifter circles with steel plate overall by bending

Transmission system using spring force component institutions

Sieve frames of wood coated with synthetic resin，shape no change

All the inside walls as well as the doors are provided with high-grade insulation

Vertical and horizontal clamping system

---degerminator

---sifter

The principle is when the sieve body are droved by two sides vibrating motors, wheat flow into the first sieve surface through feeding entrance, large impurity on the upper sieve is discharged to the hopper. Another material come into the second sieve surface for continual sift. On this surface, the wheat and small impurity are separated each other. Finally lighter impurity is discharged by the suction pipes. This machine has much speciality such as high capacity, without jaming and so on. The function is the sieve remove all impurities from wheat to reduce dust and impurity to pollute workshop as much as it can. And ensure rear working line with good running. Meanwhile to avoid jaming into the slip of screw conveyor and exit of damper bin. Behind the horizontal scourer has another vibrating sieve, to remove mud, broken  wheat, small impurity, wheat hair from the scourer.

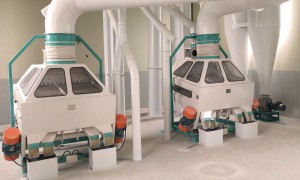

---destoner
According to different gravity between wheat and same size stones, and air dynamics, adopt destone and sieve performance and movement parameter, and air current speed, the destoner to classificate the raw material. The wheat and stones moving on the sieve with different direction, made the stones are separated from wheat.

packing:

1.Online auto cumulative weight;

2.High-precision on-line flow control;

3.Frequency (batch) weight control;

4.With MODBUS　communication interface with computer networking, computer centralized management control;

5.According to customer needs, can have the print function.

6.Feeding and support is stainless steel
